Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE ISO SGS |
| Model Number: | CGF8-8-3 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | $6,000-20,000 / Set |
| Packaging Details: | Plastic film wrapping,wooden boxes packaging |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 Set/Sets per Month |
| Capacity: | 2000BPH | Control System: | PLC Control+Touch Screen |
|---|---|---|---|
| Warranty: | One Year For Free | Bottle Volume: | 200ml-1000ML |
| Filling Temperature: | Room Temperature | Weight: | 2000kg |
| Material: | Stainless Steel 304 | Voltage: | 380V/50Hz |
| High Light: | glass bottling machine,glass bottle filler |
||

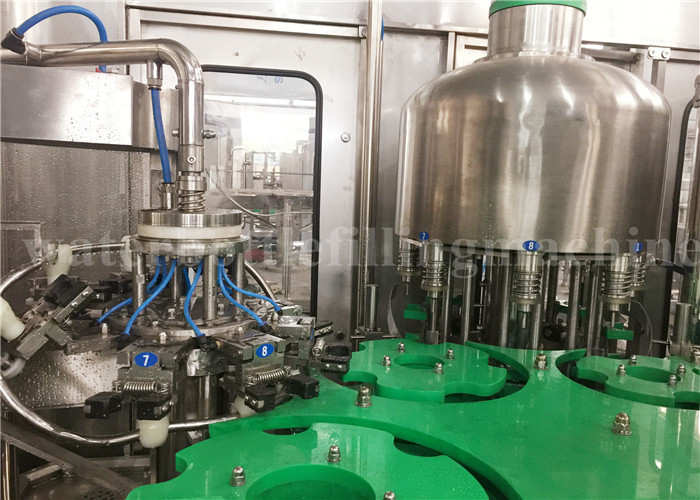

Automatic 330ML Glass Bottle Juice Filling Capping Production Machine For Small Factory
Features:
1. The Juice Bottling Equipment is using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. The machine 's bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The machine is specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The machine is high-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. The machine is spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. The machine host adopt advanced PLC automatic control technology ,the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
7. The machine equipped with a constant temperature system, temperature controlled and circumfluent automatically.
You can click the below picture to see the video.
https://www.youtube.com/watch?v=6hucff2X4Nc&feature=share
Technique parameter
| Model | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 |
| Productivity | 2000BPH | 4000BPH | 6000BPH | 10000BPH |
| Rinsing Head | 8 | 16 | 18 | 24 |
| Filling Head | 8 | 12 | 18 | 24 |
| Capping Head | 3 | 6 | 6 | 8 |
| Bottle Volume | 350ml~2000ml±10ml | |||
| Bottle Diameter | φ50-92mm | |||
| Bottle Height | 150-310 mm | |||
| Filling Tolerance | ±2% | |||
| Cap Size | 28mm and 30mm PE Standard Caps | |||
| Air Pressure | 0.6MPa | |||
| Air Consumption | 500 L/min | |||
| Filling Water Consumption | 1.5 m3/h | 1.5 m3/h | 3 m3/h | 6 m3/h |
| Rinsing Water Consumption | 0.5 m3/h | 0.5 m3/h | 1 m3/h | 2 m3/h |
| Motor Power | 4.88kw | 5.88kW | 6.68kW | 7.68kW |
| Voltage | 380V | |||
| Dimension |
(L*W*H) 2100*1500*2200mm |
(L*W*H) 2100*1500*2200mm |
(L×W×H) 2450*1800*2200mm | (L×W×H) 2750*2180*2200mm |
| Weight | 2000kg | 2500kg | 3000kg | 5300kg |
| Filling Principle | Gravity Filling | |||
CGF series rinsing filling capping 3in1 machine
Juice Rinsing Machine:
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Juice Filling machine:
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Juice Capping machine:
-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
