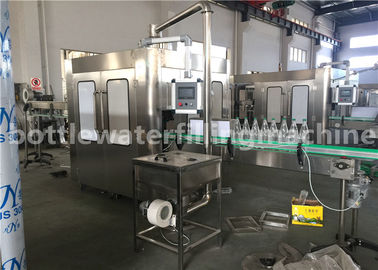

Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine

Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine

    • Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine
    • Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine
    • Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine
    • Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine
    • Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine
  • Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGF24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Control: PLC+Touch Screen Function: Filling And Capping
    Power: 6.57kw Dimension(L*W*H): 2550*2180*2200mm
    After-sales Service Provided: Overseas Service Center Available Filling Capacity: 6000BPH(500ml)
    Filling Pressure: Balanced Pressure Weight: 3500kg



    Low Noise Sparkling Water Bottling Line , Carbonated flavored Drink Filling Machine



    Detailed information and picture

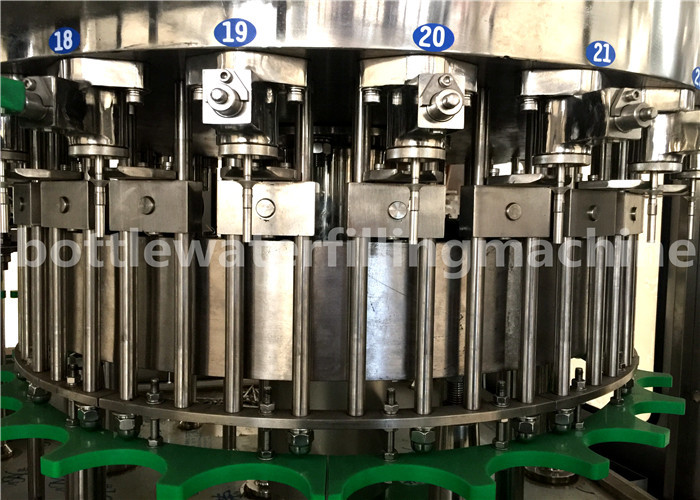

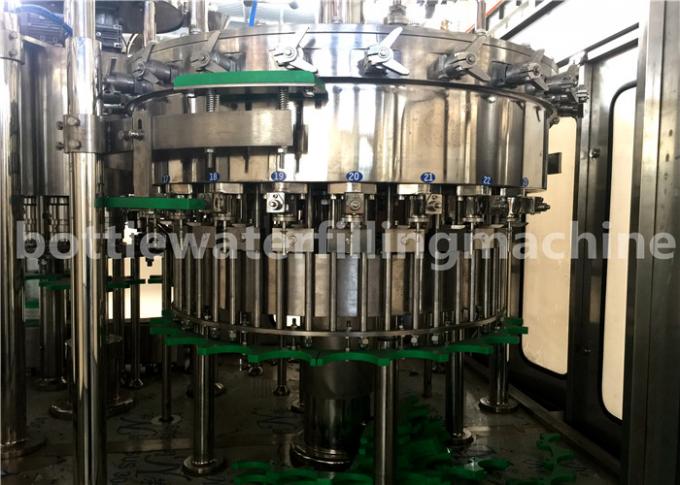

    Filling Heads.

    Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss

    Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine
    Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine

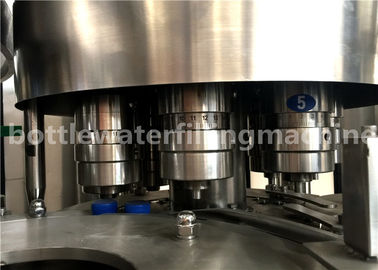

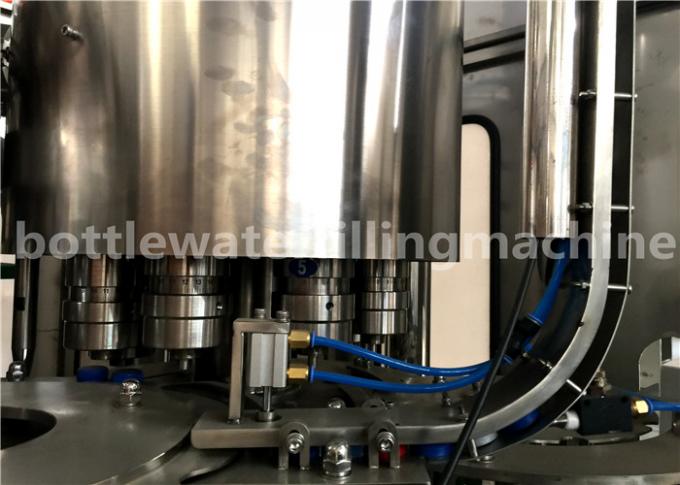

    Capping heads

    <1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
    <2> All 304/316 stainless steel construction
    <3> No bottle no capping
    <4> Automatic stop when lack of bottle
    <5> Capping effect is stable and reliable ,Defective rate ≤0.2% .

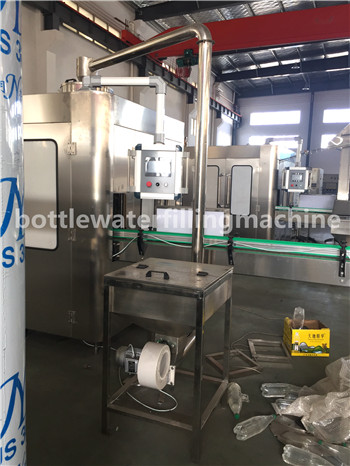

    Cap loader

    It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.


    Low Noise Sparkling Water Bottling Line , Carbonated Flavored Drink Filling Machine



    Brief specifications

    1. Filling pressure:Isobaric pressure,balanced pressure.

    2. Machine structure:2-in-1 monoblock,filling capping

    3. Bottle volume:200ml-2000ml,if larger than 2L,the machine need to be expanded.The cost will be more expensive than normal size.

    4. Capacity:6000bottles per hour based on 500ml pet bottle

    3000bottles per hour based on 1000ml pet bottle;

    ...If you want to fill different volume bottle in one machine,you must keep their bottle mouth diameter same.

    5. We also produce glass bottle carbonated beverage filling machine,but glass bottle and PET bottle can't be filled in one machine.They are two different machines.





    Technique parameter

    Material Shape Filling volume Filling level(mm) Cap type
    Plastic Bottle Round Bottle 200-2000ml
    Distance from bottle neck
    According request
    Screw cap
    Adjustable specifications of the bottle type [Middle Mould Base]Bottle diameter Φ50~Φ85mm Bottle Height 105~300mm
    Customers need to buy additional change-over parts for the different bottles.
    If using square bottles, then bottle separating system will be added.
    Carbonated Drink
    Preparation
    Syrup melter/ Mixing machine/Filter/Co2 Filter/CO2 Mixer .....
    Machine Filling
    Processing
    Washing bottle --- CO2 into bottle --- Vacuum --- CO2 --- Vacuum --- Filling Beer --- Capping



    1.One year warranty for the whole system.

    2.Free equipment installation and debugging.

    3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4.We can provide internship service and help you train the operator and mechanic.

    5.Free beverage production technology and process configuration.

    6.We can help you to design the product line, workshop and provide turn-key project.
