2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed

2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed

    • 2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed
    • 2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed
    • 2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed
    • 2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed
  • 2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGF24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Application: Beverage, Chemical, Food, Medical Packaging Type: Barrel, Bottles, Cans, Cartons
    Driven Type: Electric Power: 6.57kw
    Dimension(L*W*H): 2550*2180*2200mm After-sales Service Provided: Overseas Service Center Available
    Filling Capacity: 6000BPH(500ml) Filling Pressure: Balanced Pressure
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine



    2 In 1 Automatic Pet Bottle Filling Capping Machine For Carbonated Drink , Cola , Beer



    This is 2-in-1 monoblock carbonated drink filling and capping machine is customized according to customer's requirements,Usually,we do it as 3-in-1 monoblock washing filling capping



    Description

    The machine is a full-automatic multiple-function filling and capping 2-in-1 unit. It is used in  filling and sealing all kinds of carbonated soft drinks such as CSD, Cola,Soda water, soft drink. The line has features of unique

    design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.





    Characteristic

    1). This machine operates easily, with compact structure, perfect control system and high level of  automation.

    2). The filling process of different types of bottles can be reached only by changing the star-wheel

    3). The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.

    4). By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.

    5). The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.

    6). This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.

    7). The machine is convenient to adjust the amchine to fill various types of bottles.

    8). The filling operation is faster and more stable due to the isobar filling operation of the new type is adopted.

    9). The output and benefit of the machine is higher than the machines of the same specification.

    10). It is convenient to operate with higher automation due to every parts of the machine is inspected to run with photo electrical detector.

    11). The machine is idea-preferred equipment for beverage maker.



    Technique parameter

    Model DGF18-6 DGF24-8 DGF32-10 DGF40-12
    Capacity :500ml 4000 6000 8000 12000
    Bottle shape: round or square
    PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap: Plastic srew cap
    Filling precision: ≤±5mm(liquid level)
    Filling pressure:(Mpa) <0.4
    Water pressure of washing bottle:(Mpa) 0.18-0.25
    Water consumption for water bottle(Kg/h) 2000 2500 3000 3000
    Spraying position 5 6 12 12
    Dripping bottle position 3.0 3.5 7 7
    Gas source pressure(Mpa) 0.4
    Gas consumption(m³/min) 0.4 0.4 0.5 0.5
    Total power 5.03 6.57 8.07 8.07
    Overall size:(mm) 2450*1800*2200 2780*2200*2350 3600*2650*2350 3800*2950*2400
    Weight: (kg) 3000 4000 5000 6000

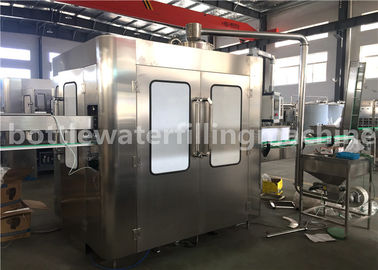

    Overall appearance

    2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed 0

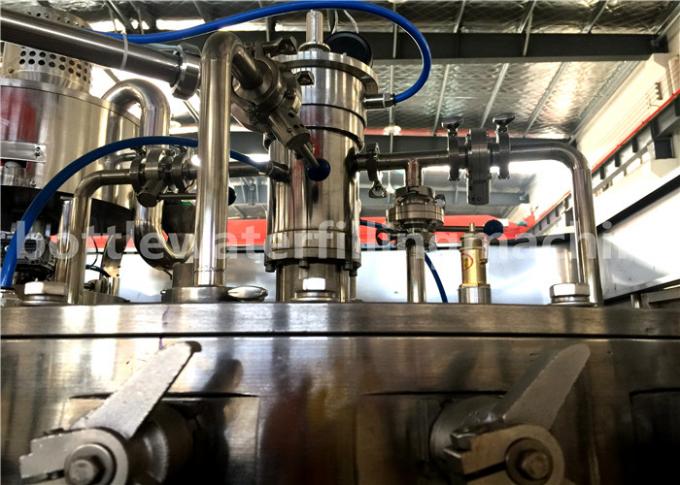

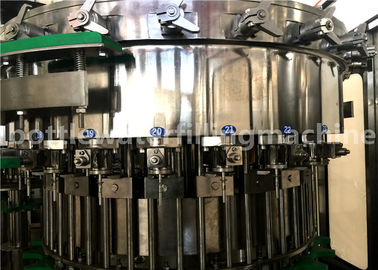

    Filling part

    2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed 1

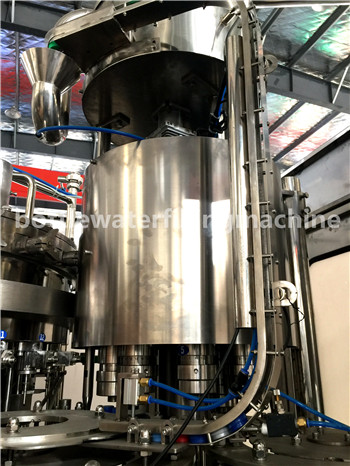

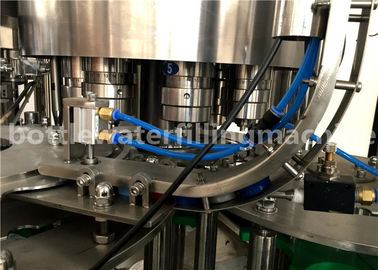

    Capping part

    2 In 1 Automatic Pet Bottle Filling Capping Machine For Cola / Beer , High Speed 2
