Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant

Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant

    • Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant
    • Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant
    • Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant
    • Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant
    • Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant
  • Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGCF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Bottle Type: Glass Bottle Cap Type: Aluminum Screw Cap,Crown Cap
    Power: 8.07kw Dimension(L*W*H): 3600*2200*2600mm
    After-sales Service Provided: Overseas Service Center Available Filling Capacity: 8000BPH(500ml)
    Filling Type: Balanced Pressure Weight: 5000kg



    2019 New Pepsi Cola Fanta Glass Bottle Filling Machine Carbonated Beverage Plant



    Description:
    The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.

    Technique parameter:

    Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
    Capacity :500ml 4000 6000 8000 10000
    Bottle shape: round or square
    PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap: Aluminum srew cap
    Filling pressure Balanced pressure
    Filling precision ≤±5mm
    Water pressure of washing bottle(Mpa) 0.18-0.25
    Water consumption of water bottle(kg/h) 2000 2500 3000 3000
    Spraying position 5 6 12 12
    Dripping bottle position 3.0 3.5 7 7
    Gas source pressure(Mpa) 0.4
    Gas consumption(m³/min) 0.4 0.4 0.5 0.5
    Total power(KW) 5.03 6.57 8.07 8.07
    Overall size:(mm) 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600
    Weight: (kg) 3000 4000 5000 5000



    Features:
    1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)
    2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.
    3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.
    4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.
    5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.
    6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.



    Image:

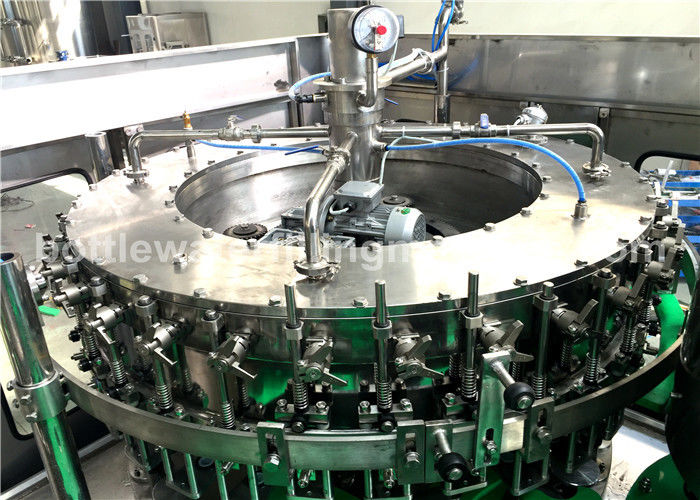

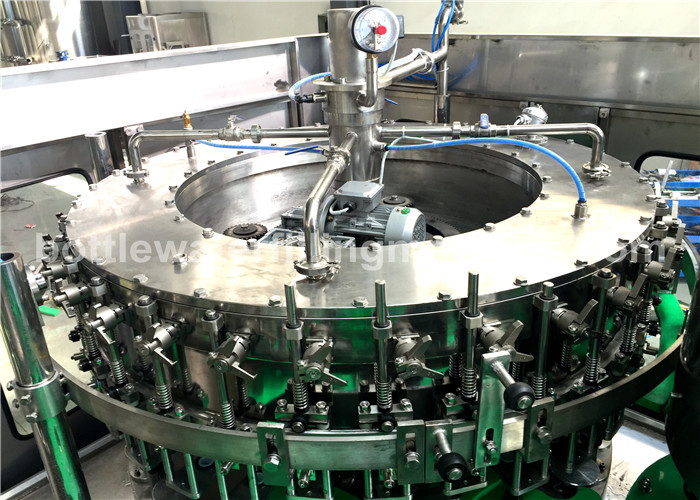

    Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant

    Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant

    Pepsi Cola Fanta Glass Bottle Filling Machine , Carbonated Beverage Bottling Equipment Plant

    IF you want to the detailed quotation,please leave me these message
    1, bottle vlolume
    2, bottle materail (machines for glass bottle and plastic bottle are different)
    3, how many bottles per hour you want to produce ?
    4, do you need this water filling machines only or whole water production line



    Our factory can provide products as below

    1. Pure/mineral/drinking/spring/distilled water filling machine/complete production line

    2. Juice/juice pulp(particle) filling machine/complete production line

    3. Tea/mikl drink/vinegar/soy sauce filling machine

    4. Carbonated drink/beer/cola/soda water filling machine/complete production line

    5. 5 gallon/20 liter water barrel filling machine/complete line

    6. Complete water treatment system

    7. Bottle packaging system.Bottle blowing and moulding machine
