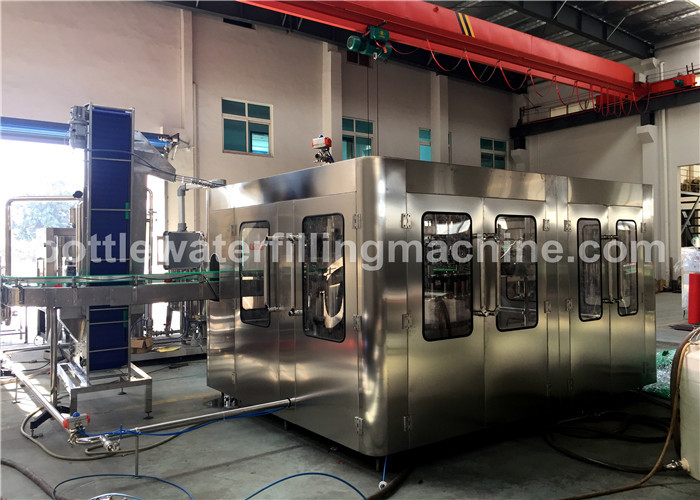

Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line

Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line

    • Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line
    • Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line
    • Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line
    • Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line
    • Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line
  • Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGCF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Application: Beverage, Chemical, Food, Medical Bottle Type: Glass Bottle
    Driven Type: Electric Power: 8.07kw
    Dimension(L*W*H): 3600*2200*2600mm After-sales Service Provided: Overseas Service Center Available
    Filling Capacity: 8000BPH(500ml) Filling Type: Balanced Pressure



    Glass Bottle Soda Water / Energy Drink Filling Machine / Carbonated Drink Production Line



    Quick information
    1. DGCF32-32-10 Carbonated soft drink filling machine
    2. Monobloc machine----It contains washing filling capping three parts.
    3. It suitable for Glass bottle with Aluminum screw cap
    Iso Soda Water / Energy Drink Machine , Carbonated Drink Production Line
    The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.

    Features:
    1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)
    2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.
    3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.
    4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.
    5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.
    6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.

    Technique parameter:

    Model:DCGF18-18-6DCGF24-24-8DCGF32-32-10DCGF40-40-12
    Capacity :500ml40006000800010000
    Bottle shape:roud or square
    PET bottle: (mm)(Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap:PE srew cap
    Filling precision:≤±5mm
    Filling pressure:(Mpa)0.15-0.350.15-0.350.15-0.350.15-0.35
    Rinsing pressure:(Mpa)0.2-0.250.2-0.250.2-0.250.2-0.25
    Filling volume :(L)3.5468
    Overall size:(mm)2450*1800*22002780*2200*23503600*2650*23503800*2950*2400
    Weight: (kg)3000400050006000
