Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

    • Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
    • Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
    • Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
  • Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JINYATE
    Certification: CE SGS
    Model Number: DCGF18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: pls inquire
    Packaging Details: standard wooden case
    Delivery Time: 50 days
    Payment Terms: L/C, T/T
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Carbonated Drink Filling Machine Function: Fill, Cap
    Suitable Bottle: Plastic Bottle Suitable Cap: Screw Cap, Sports Cap
    Control: PLC&HMI Material: SUS304



    Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine



    This Carbonated Beverage Machine is our company's introduction of German technology, combined with the characteristics of carbonated soft drink production industry, designed to develop carbonated drink filling equipment. The carbonated beverage machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.
    We are the professional automatic 2 in 1 carbonated soft drink filling machine manufacturer in China.



    General Information
    1. This Carbonated Beverage Machine is for PET bottle. (PET Bottle)
    2. Its Capacity is 4,000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
    3. This Carbonated Beverage Machine is used for gas beverage filling, Carbonated Water Filling, Carbonated Drinks Filling,Soft Drinks Filling.



    Machine detailes

    Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

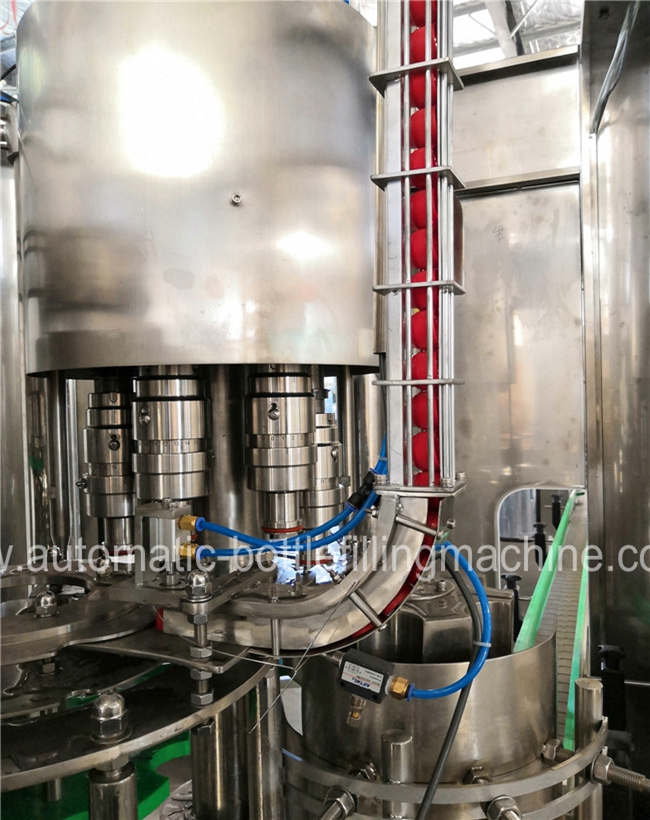

    High Speed Filling Valve

    High Speed Filling Valve can reach 200ml/s,made of SUS 304(for water filling) & excellent SUS316L(for hot filling and soft drinks filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.

    Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

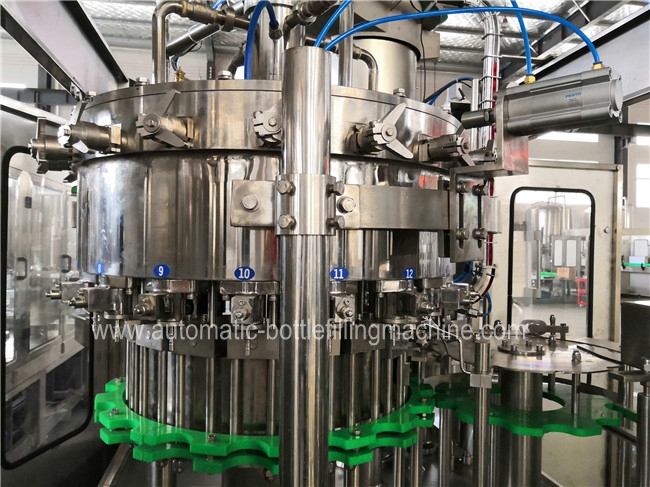

    Bottle Neck Clamping Technical

    Adopt bottle neck clamp,only these green parts in red circle need to be changed when bottle size change,but bottle neck should be the same.

    Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

    Technical Parameters of Carbonated Beverage Machine
    Model
    DCGF16-12-6
    DCGF18-18-6
    DCGF24-24-8
    DCGF32-32-10
    DCGF40-40-12
    Rinsing Heads
    14
    18
    24
    32
    40
    Filling Heads
    12
    18
    24
    32
    40
    Capping Heads
    4
    6
    8
    10
    12
    Capacity(BPH)
    3000
    5000
    7000
    10000
    15000
    Motor Power(KW)
    2.2
    3.5
    4.5
    6.0
    7.5
    Dimension(mm)
    2100*1500*2200
    2300*1700*2400
    2800*2200*2400
    2900*2200*2500
    3600*2700*2850
    Weight(KG)
    2000
    2500
    3500
    5500
    7500

    After-sale Service

    In order to ensure our customers can operate our machines well, after-sale oversea services are provided by our senior engineers. The after-sales services include products implementation, standard operation training, and products maintenance.
