Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    • Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine
    • Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine
    • Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine
    • Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine
    • Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine
  • Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    Product Details:

    Place of Origin: Jiangsu,China(mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 8000-26000
    Packaging Details: wooden carton
    Delivery Time: 30 days
    Supply Ability: 20 piece month
    Contact Now
    Detailed Product Description
    Material: SUS 304/316 Type: Filling Machine
    Condition: New Application: Beverage
    Packaging Type: Bottle Packaging Material: Wooden
    Automatic Grade: Full Automatic Driven Type: Electric
    Voltage: 380V 50Hz Power: 3KW
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Product Name: Water Bottle Machine
    Function: Bottle Washing Filling Capping Processing Type: Normal Pressure Filling
    Filling Material: Mineral Water, Pure Water, Drinking Water Bottle Type: PET Plastic Bottle
    Botttle Volume: 300-2000ml Capacity: 2000-30000bph
    Control: PLC+ Touch Screen Warranty: 1 Year
    Contact Information: Cell Phone:+86 18862201209 Email:kiraliko@163.com



    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine



    Products Introduction

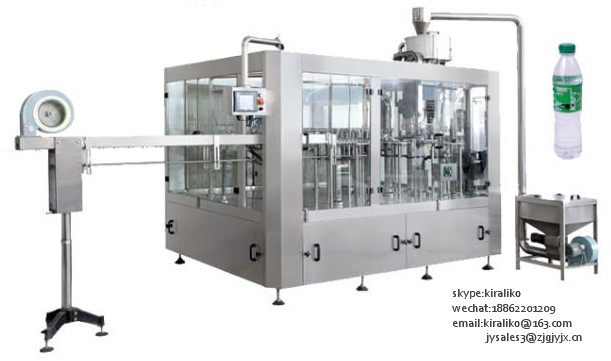

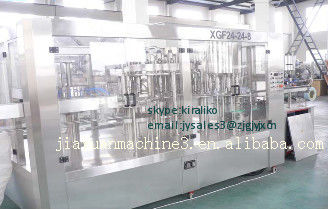

        This Full Automatic Plastic Bottle Water Filling Machine used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine



    Characteristics

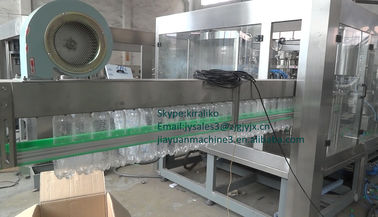

    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

    3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



    Technical Parameters



    Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
    Production capacity(500ml) 2000-4000 4000-6000 6000-8000 12000-15000 16000-18000
    Filling precision ≤±5mm(liquid level)
    Polyester bottle standard(mm) Bottle neck40-80 Bottle neck: 50-100 bottle height:150-320
    Suitable cap shape Plastic screw cap
    Water pressure of washing bollte(MPa) 0.18-0.25
    Water consumption for water bottle(kg/h) 800 1600 2500 3000 1000
    Spraying positon 5 5 6 12 5
    Dripping bottle position 3 3 3.5 7 8
    Gas source pressure normal pressure
    Gas consumption (m3/min) 0.3 0.3 0.4 0.5 0.6
    Total power(kw) 4.23 5.03 6.57 8.63 9.63
    Total weight 2000 3500 5500 6000 8000
    Dimension(L*W*H) (mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3500*2200*2250 3500*2200*2250



    Machine details

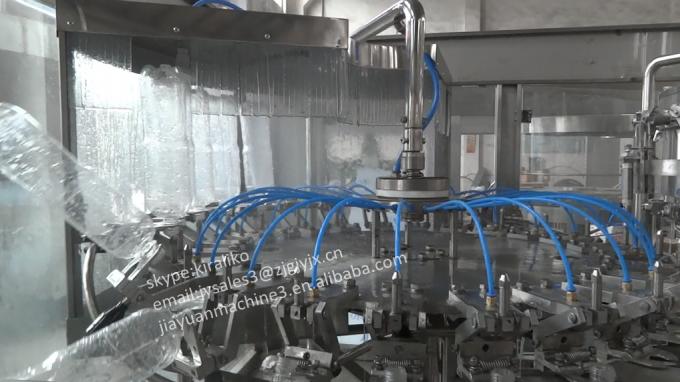

    Washing part of water bottle filling machine

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    a) Rotary pan is made of stainless steel 304(or change to 316 according to your request).

    b) The rubber clamp splice sizes the mouth of bottles, which is fixedness and reliable.

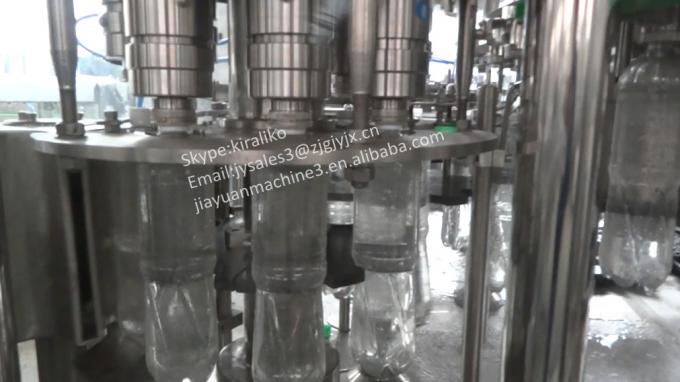

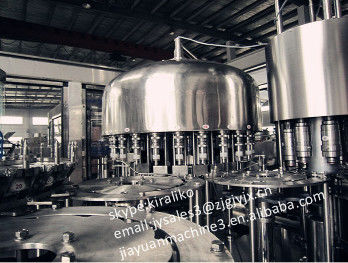

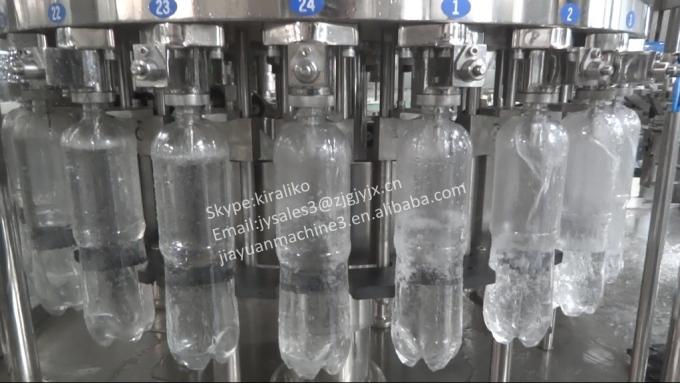

    Filling part of water bottle filling machine

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    a) Rotary pan is made of stainless steel 304 (or change to 316 according to your request )

    b) The way of filling is gravitation filling.

    c) The filling valve is adopted best stainless steel 304 (or change to 316 according to your request )

    d) The structure of filling valve is reasonable, the amount is correct

    e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

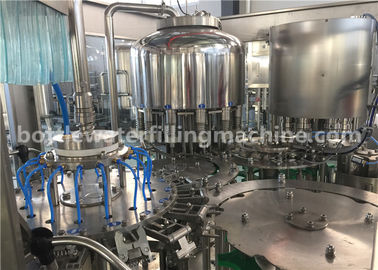

    Capping part of water bottle filling machine

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    Capping machine is one of the highest precision machines, which greatly affects the reliability of device and the defective rate of product. The characteristic is as follows:

    a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

    b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.



    Related Products

    1.water treatment plants in our workshop

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    2.packaging system plants in our workshop

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine



    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine



    Packaging&Shipping

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine



    Company Information

    Mineral Water Juice Gas Bevarage Filling And Sealing Machine / Liquid Filling Machine

    Zhangjiagang Jiayuan Machinery Co.,Ltd is a professional beverage machinery manufacturer, we dedicate ourselves to provide you the best machine with best price.

    We can provide beverage production line as below:

    1.Complete minereal/pure water production line;

    2. Complete carbonated beverage production line;

    3. Complete juice production line;

    4. 5 gallons water production line;

    5.Canning beverage production line;

    6.Glass bottle beer production line;

    7. Milk/tea filling&package line;

    8. Oil filling&package line;
