    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Automatic Grade: Automatic
    Driven Type: Electric Warranty: 1 Year For Free
    Filling Type: Normal Pressure Filling Processing Types: Water
    Dimension(L*W*H): 2800*1100*1600MM Filling Bottle Size: 1-5gallen/3-19L
    Power: 3.8kw

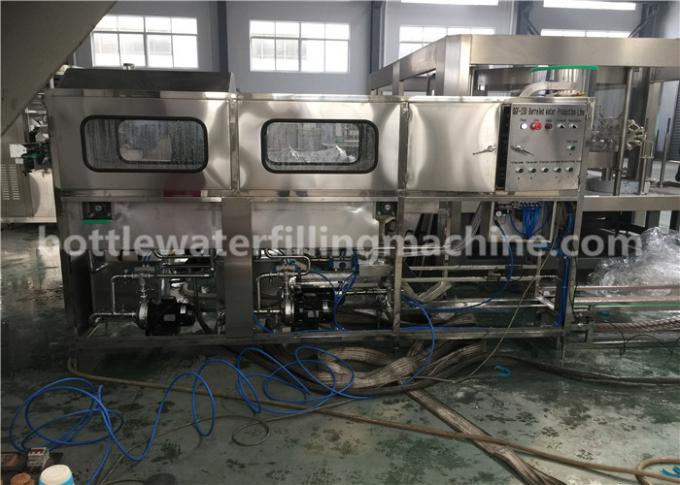

    20Liter Water Jar Washing Machine For 5 Gallon Water Filling Machine



    Description

    The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.

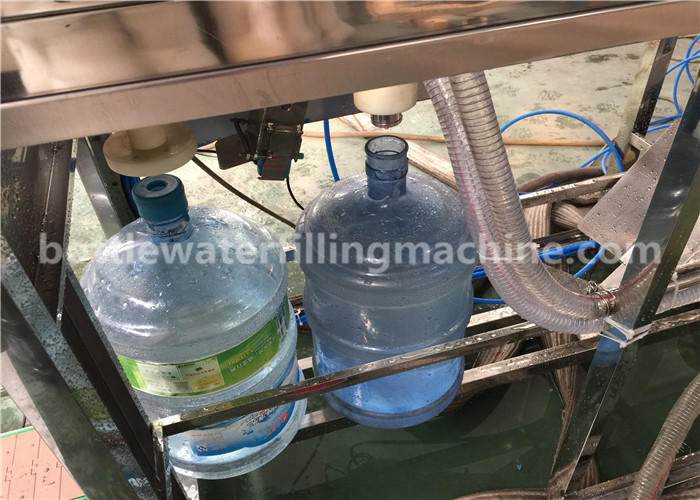

    20 Liter Water Jar Washing Machine For 5 Gallon Water Filling Machine

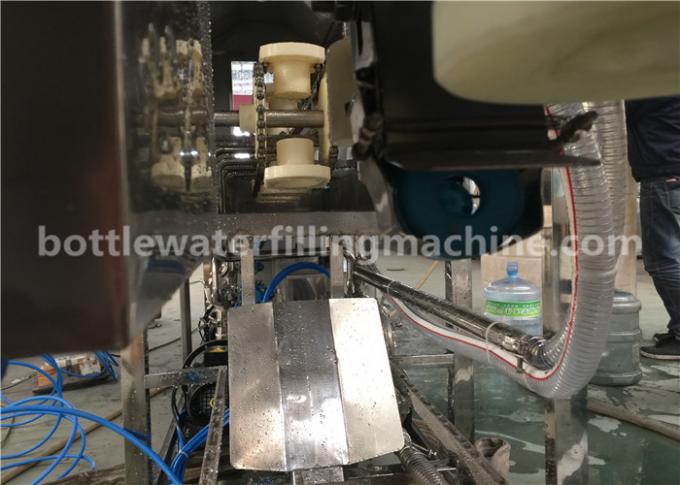

    20 Liter Water Jar Washing Machine For 5 Gallon Water Filling Machine

    Features

    1) The machine has the advantages of complete function, compact structure, novel design and high degree of automation,

    2) It is equipped the imported computer control system and touching screen operation, whose key components are imported from Germany, Taiwan, American assembly. It is a new type drinking water machine electrical integrated equipment.

    3) According to the customer requirement, we will change the modification design basing on the existing machine.



    The 5 gallon automatic filling machine is designed and made by our company after absorbing advanced technology from USA, Italy and France and improved by ourselves as per market situations. It is one of the most advanced filling equipment in the world. With advanced technology, reliable performances, scientific process flow, good food hygiene conditions, the equipment is an ideal filling machine for manufacturers in various industries, especially drinking water industry.



    The main parts of the machine is made of superior stainless steel and others are made of non-toxic and durables materials. The electric and pneumatic systems consist of imported components such as Japanese PLC, French contactor, German sensor and SEW reducer, so as to ensure low failure rate and high reliability of the machine.



    Technical parameter

    Model QGF-80 QGF-150 QGF-300 QGF-450 QGF-600
    Filling heads 1 1 2 3 4
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 80 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.37 0.6 0.8 1
    Motor power 1.38 1.75 3.8 3.8 7.5
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 500 700 1200 1600 2000
    Dimension 2500*1100*1600 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

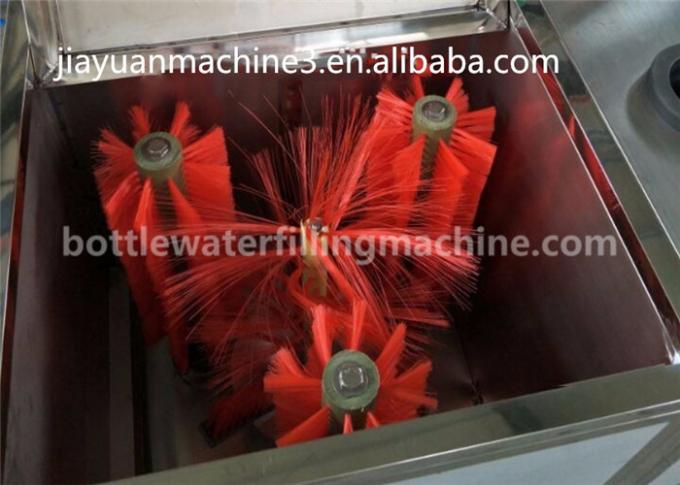

    Description of semi-automatic barrel brusher

    20 Liter Water Jar Washing Machine For 5 Gallon Water Filling Machine

    1. This semi-automatic decapper and washer is the corollary equipment of 5 gallon barrel drinking water production line. It is used for the decapping and washing of the recycled barrel before filling, increasing efficiency. It is suitable for the small capacity like 150bph.

    2. The machine is made of high quality stainless steel (304#, 316#), resistant to corrosion, easy to clean.

    3. Main part of the machine which contact with liquid is made of high quality stainless steel, resistant to corrosion, easy to clean.

    4. Main electrical element is from SIEMENS, OMRON; pneumatic element is from AIRTAC.

    Technical parameter:
    Material: SUS304
    Power: 0.37KW
    Dimension: 900*800*1100mm
    Weight: 100kg



    Our Services

    1. One year warranty for the whole system.

    2. Free equipment installation and debugging.

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4. We can provide internship service and help you train the operator and mechanic.

    5. Free beverage production technology and process configuration.

    6. We can help you to design the product line, workshop and provide turn-key project.
