5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer

5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer

    • 5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
    • 5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
    • 5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
    • 5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
    • 5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
  • 5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: jiayuan
    Certification: CE,ISO,SGS
    Model Number: RCGF18-18-18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 800,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 work days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Type: Filling Machine Filling Temperature: Hot Filling
    Voltage: 380V 50Hz Dimension(L*W*H): 3450*1800*2200mm
    Weight: 5000KG After-sales Service Provided: Engineers Available To Service Overseas
    Warranty: One Year For Free Material: Food Grade Stainless Steel 304
    Filling Capacity: 2000-3000BPH(500ml) Bottle Type: Glass Bottle

    5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer


    Specific information:
    1. This 5-in-1 unit machine is suitable for glass bottle
    2. Capacity:2000-3000 bottles per hour
    3. Hot filling machine with back-flow system
    4. It can be used for filling juice,milk,tea,water,non-gas contained beverage.

    Video of this machine,please click here:
    5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
    Features

    1. All the machine part which contact with liquid is high quality stainless steel 304.

    2. The relative fittings and components are from international famous brands,such as Siemens,Mitsubishi.

    3. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

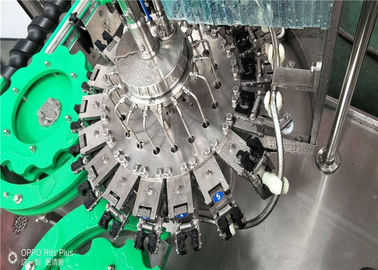

    4. This machine is comprised of rinsing(disinfectant,pure water), sterilzing,filling and capping system.Rinsing(disinfectant,pure water): grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.

    Sterilzing:use a steam generator to provide the steam,the steam sterilzing part is isolated,It also use a cap sterilizer to sterilzing the caps.

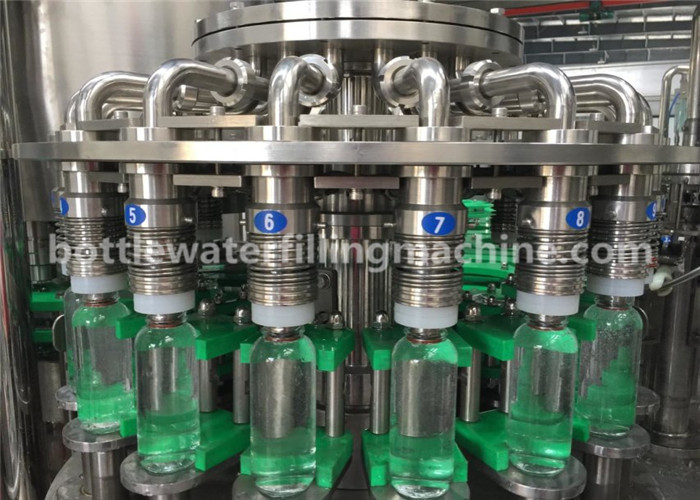

    Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

    Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
    5. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

    6. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

    7. Safe protective devices ensure safety of operator and machine

    8. Unique control mechanism keeps circumfluence volume below 5%

    Technique parameter

    Model RCGF18-18-18-18-6
    Productivity 2000-3000BPH
    Rinsing Head(disinfectant) 18
    Rinsing Head(pure water) 18
    Sterilizing by steam 18
    Filling Head 18
    Capping Head 6
    Bottle Volume 350ml~2000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm Aluminum Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Gas Consumption 0.4 m3/min
    Motor Power 6.68kW
    Voltage 380V
    Dimension (L×W×H) 2950*1800*2200mm
    Weight 6000kg
    Filling Principle Gravity Filling

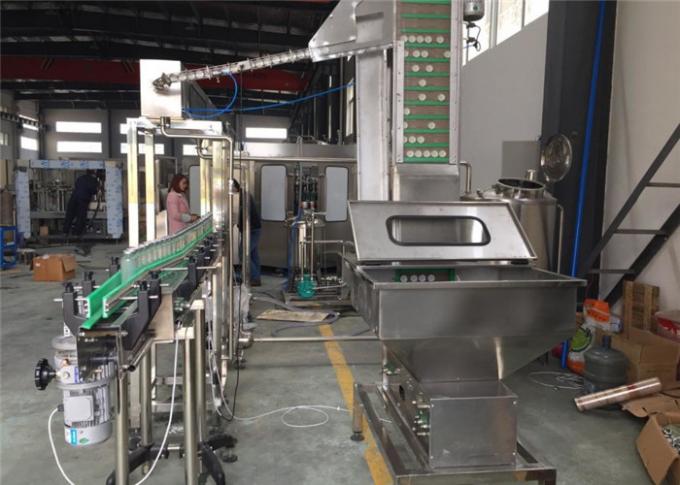

    Cap feeder

    5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer



    Flowback

    5-In-1 Glass Bottle Fruit Juice Filling Machine With Steam Sterilizer
