Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine

Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine

    • Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine
    • Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine
    • Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine
    • Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine
    • Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine
  • Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: CYG-12 FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $8,700-500,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 2000 Cans Per Hour Can Type: Tin / Aluminum Can
    Filling Material: Pure Water,mineral Water,Juice,liquor,etc Function: Can Filling Sealing
    Filling Pressure: Normal Pressure After-sale Service: Engineers Available To Service Overseas
    Automatic Grade: Fully-automatic Warranty: One Year For Free
    High Light:

    PET Bottle Filler Machine

    ,

    Beverage Filling Line

    Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine



    Description

    The production line inculds QSG16 can rinsing,CYG often pressure filter,FXZ cap turining machine,SSJ carrying machine etc.The key parts for washing,filling and sealing are made of high quality stainless material,with the features of advanced technology,completed system,reliable performance,easy in operation,etc.



    Features

    1, Construction of the machine body: Whole filling machine produced by SUS304, materials touched parts are SS 316L, Measure up to GMP standards;

    2, Select PLC control system, touch screen operation panel can save multi-groups of datas;

    3, Adopt lifting filling, ensure no bubble; With bottle mouth localizer;

    4, PLC controlled by: SIMENS (from Germany) or MITSUBISHI (from Japan);

    5, Pneumatic parts adopt: FESTO (from Germany) or AIRTAC (from Taiwan);

    6, Filling nozzles with anti-leaking function, blocked nozzles for products that tend to string and drip;

    7, Easy to operate, no bottle no filling, auto orientation detection;

    8, Can equip with auto production line: bottle sorting, filling, cap feeding, capping, sealing, labeling, printing, packing and etc.

    9, Other special functions, such as "autocheck and display of malfunction", "liquid level alarm", " Diving nozzles for bottom up filling of foraming products",etc.



    Technical parameter

    Model QSG16 can rinsing machine CYG-12 FXZ-1
    Production capacity 2000 2000 2000
    Bottle/can type ∅40-80 ∅40-90 H50-340 ∅50-67 H90-200
    Power(kw) 0.55 1.1 0.75
    Overall dimensions(mm) 1900*530*1100 810*1050*2050 930*700*1850
    Weight(kg) 480 500 500



    Some picture show

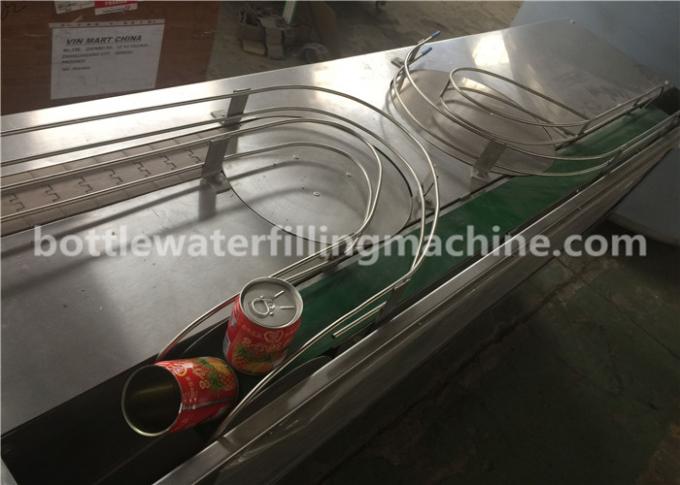

    Rinsing part

    Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine 0

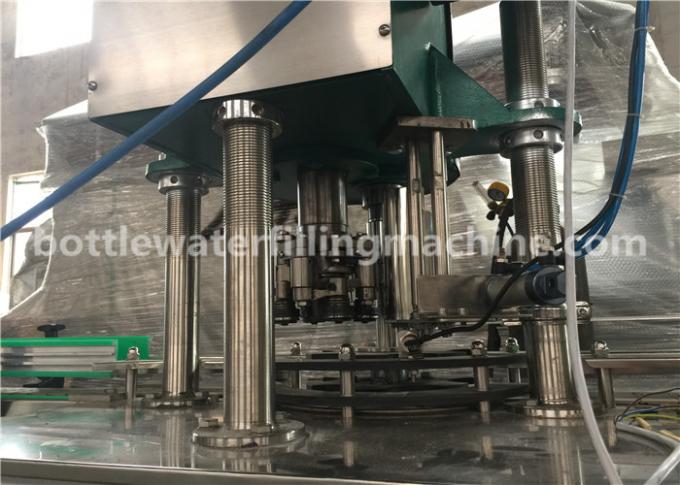

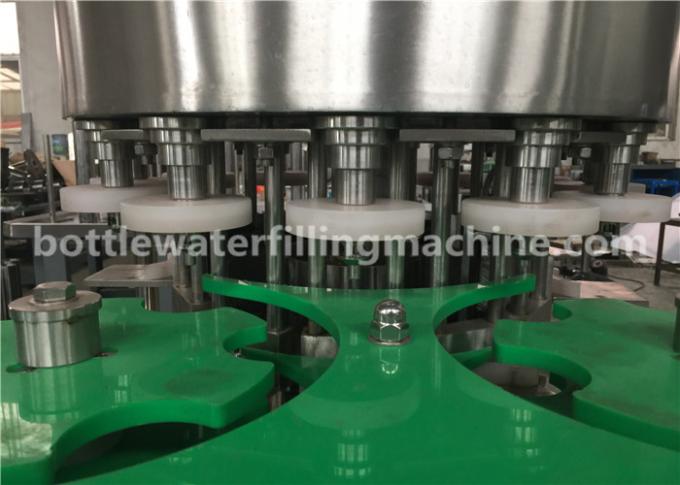

    Filling part

    Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine 1

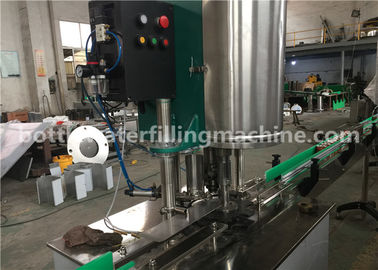

    Sealing part

    Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine 2
