Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line

Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line

    • Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line
    • Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line
    • Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line
    • Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line
    • Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line
  • Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: GFP-12 FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $8,700-500,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 2000 Cans Per Hour Can Type: Tin / Aluminum Can
    Filling Material: Juice,milk,tea Etc Function: Can Filling Sealing
    Color: Silver Gray Condition: New
    Filling Pressure: Negative Pressure After-sale Service: Engineers Available To Service Overseas

    Canned Juice / Vodka / Milk Filling Machine For Small Beverage Canning Line





    Features:

    1). Compact structured, good-looking, easy to operate and highly automated.

    2). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.

    3). Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.

    4). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.

    5). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.

    6). Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.



    Description

    The filling machine adopts negative pressure quantitative filling. By adopting the frequency conversion speed adjustment, it has such features as stable filling, high flow, rapid speed, accurate filling volume, no fillingin case of no can, automatic control of the liquid level of material cylinder, etc. The steam jetting device can be allocated according to customer requirements to increase the vacuum degree in the can.

    Beverage tank with double insulation,and with a beverage mixing device in order to ensure the uniformity of juices and particles



    Sealing machine with four rollers double sealing type structure, suitable for small size round cans sealed.
    The machine has the advantages of convenient assembly and disassembly of parts, simple maintenance,
    convenient operation. The control part adopts advanced electric, gas control technology, convenient speed regulation, high cover dropping accuracy, is canned food factory, beverage factory preferred models. The machine through the steam jet to tank to reach vacuum requirements.



    Technical parameter

    Model QSG16 can rinsing machine GFP-12 FXZ-1
    Production capacity 2000 2000 2000
    Bottle/can type ∅40-80 ∅40-90 H50-340 ∅50-67 H90-200
    Power(kw) 0.55 1.1 0.75
    Overall dimensions(mm) 1900*530*1100 810*1050*2050 930*700*1850
    Weight(kg) 480 500 500



    Some picture show

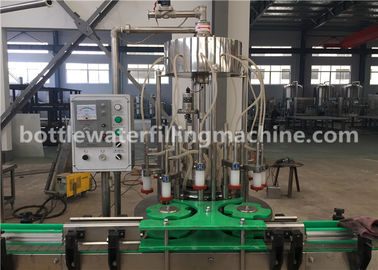

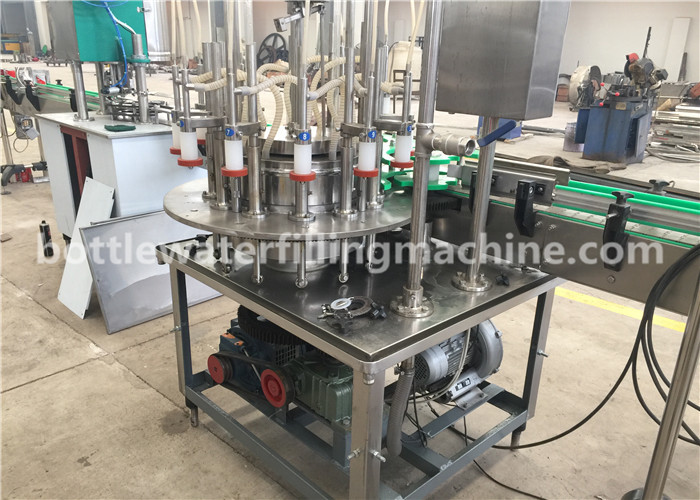

    Filling part

    Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line

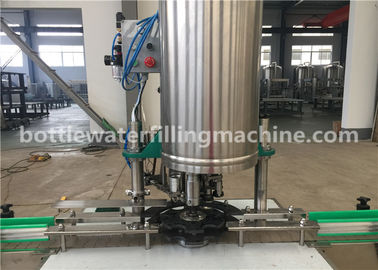

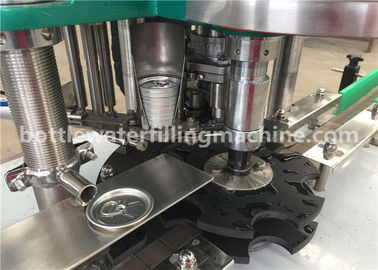

    Capping part

    Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line

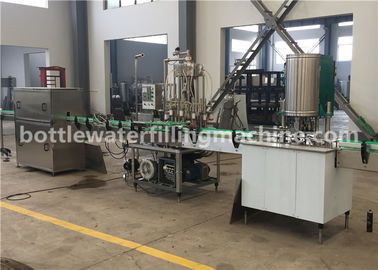

    Can turn-up machine and conveyor

    Canned Juice / Vodka / Milk Beverage Filling Machine For Small Beverage Canning Line
