Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH

Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH

    • Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH
    • Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH
    • Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH
    • Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH
  • Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: RCGF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: pls inquiry
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Juice Filling Machine Function: Bottle Rising Filling Capping
    Filling Material: Juice,tea, Water Filling Type: Normal Tempreture
    Capacity: 5000-6000B/H Warranty: 1 Year
    Control: PLC+Touch Screen Material: SUS304
    High Light:

    juice bottling equipment

    ,

    juice bottling machine

    Automatic Tea Juice Bottling Machine Ultra Clean System 6000BPH



    Brief Introduction:

    JuiceFilling Machine for PET bottle integrates the function of rinsing, filling and capping together.

    Based on advanced technology overseas, and designed according to hot filling processing demands

    of tea drink, juice etc to be one of the advanced hot filling production lines.



    Main features

    1. Safe and Automatic Running:

    The machine adopts bottleneck blocking and filling valve rise-drop design, and it satisfies for 95℃ hereinafter hot filling technology demand. The function of fluent and fast filling action, high filling precision, reliable capping and low materials loss makes it effectively prevent secondary pollution of the neck. It can achieve the replacement of different bottles only by exchanging equivalent parts.It adopts humanized interface touch screen, PLC ,transducer etc. Advanced control technology with high automation in the whole process.The machine’s main electrical parts are from famous international supplier.



    2. High Technology:

    Advanced filling technology from Germany and Italy is applied on the machine, which assure quick filling and high accuracy of liquid level control.



    3. High grade materials:

    All parts connected with water are made of food grade stainless steel.

    All main components makers are world-known manufacturers.

    Technical parameter

    Model RCGF18-18-6
    Capacity 6000bph (500ml PET bottle)
    Suitable bottle Polyester bottle, PET bottle
    Filling materail Fruit juice, tea, water
    Bottle Height 150-310mm
    Bottle Diameter 40-108mm
    Filling Temperature ambient
    Filling Technology gravity filling
    Applications purified water and mineral water
    Power supply 380V 50Hz 3Phases or customized
    Total power 6.57KW
    Dimension 2450*1800*2200mm
    Weight 5500kg

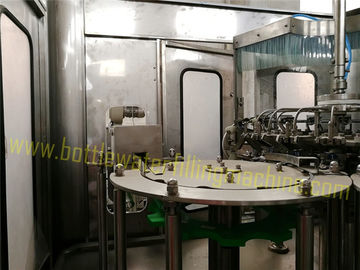

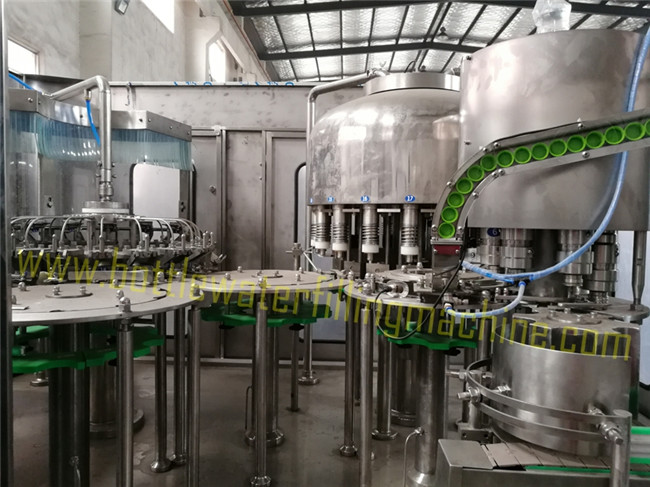

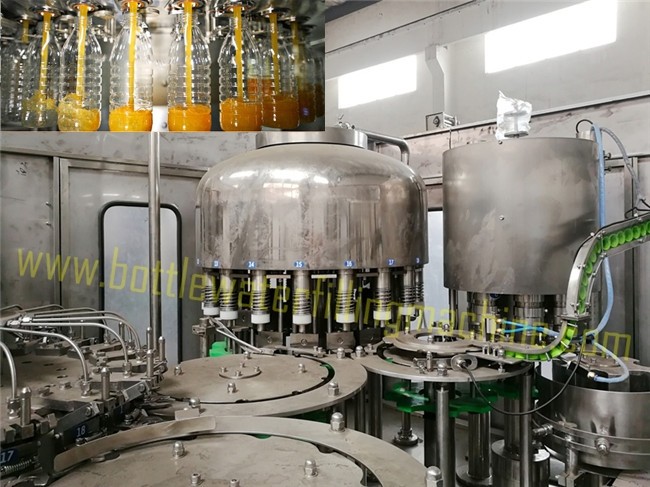

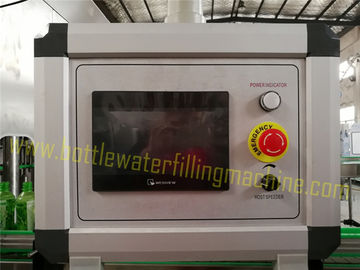

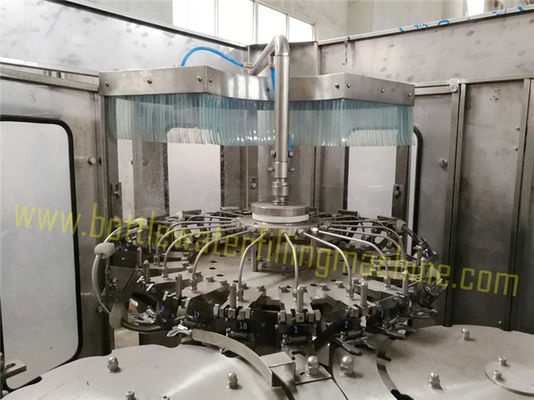

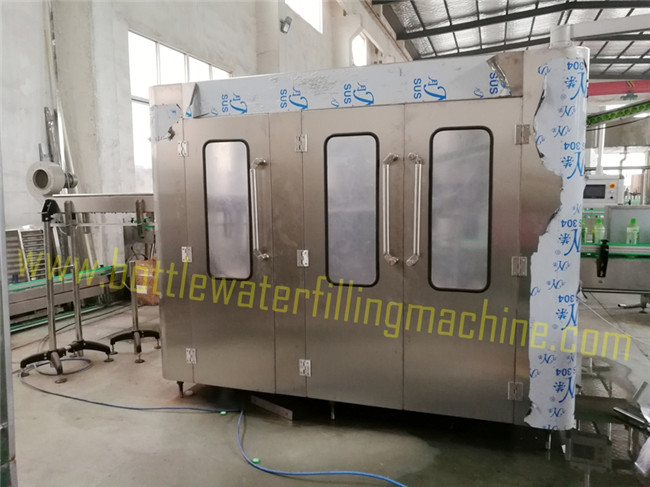

    Product Details

    Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH 0

    Touch Screen Tea Juice Filling Machine Ultra Clean System 6000BPH 1



    Besides this 6000B/H, we also have other capacity

    Model RCGF16-12-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12 RCGF50-50-15
    rising heads 16 18 24 32 40 50
    filling heads 12 18 24 32 40 50
    capping heads 6 6 8 10 12 15
    Bottle standard(mm)

    Diameter:Φ50-Φ108

    Height:150-320

    Rated production capacity(B/H for 500ml) 4000 6000 10000 12000 16000 24000
    Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12
    Overall size L*W*H(mm) 3050*2000*2400 3170*2070*2400 4070*2350*2400 5100*2600*2400 6250*3050*2400 7500*3900*2400



    we can supply all these capacity filling machines, just have a furthur learn... ...
