Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS

Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS

    • Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS
    • Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS
    • Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS
  • Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: RCGF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: pls inquiry
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Juice Filling Machine Function: Bottle Rising Filling Capping
    Suitable Bottle: PET Bottle Filling Material: Juice, Tea, Coffer,tea
    Filling Type: Hot Filling Capacity: 14000B/H
    Material: SUS304 Colour: Silver
    High Light:

    juice bottling machine

    ,

    pet bottle filling line

    Tea / Grapefruit Juice Filling Machine Industrial  Bottling Equipment With CE



    Main characters

    1) To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate

    2) The parts contacting media are made from stainless steel and have no process blind angles to enable easy cleaning

    3) Stainless steel bottle clip, the clip does not touch the bottle screw, the rinsing nozzle is “plum blossom” shape, so it can care each inch of the bottle.

    4) This machine adopts micro negative pressure hot filling, has high filling accuracy.

    5) Screw capping machine designed according to Italy technical, France technology.

    6) The cap feeder has the function of protection cap, and also can test no cap status and process cap adding.


    Technical parameter
    Model RCGF32-32-10
    Capacity 12000-15000bph (500ml PET bottle)
    Suitable bottle Polyester bottle, PET bottle
    Filling materail Fruit juice, tea, coffee, other non-carbonated beverage
    Bottle Height 150-310mm
    Bottle Diameter 40-108mm
    Filling Temperature ambient
    Filling Technology gravity filling
    Applications purified water and mineral water
    Power supply 380V 50Hz 3Phases or customized
    Total power 9.18KW
    Dimension 3600*2800*2200mm
    Weight 5500kg


    Product Details

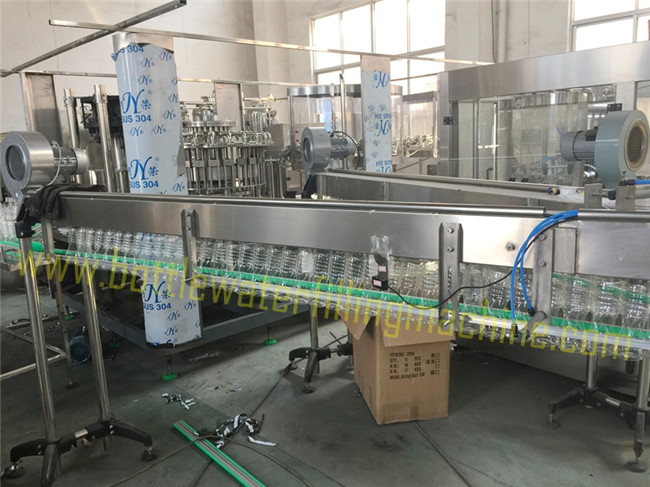

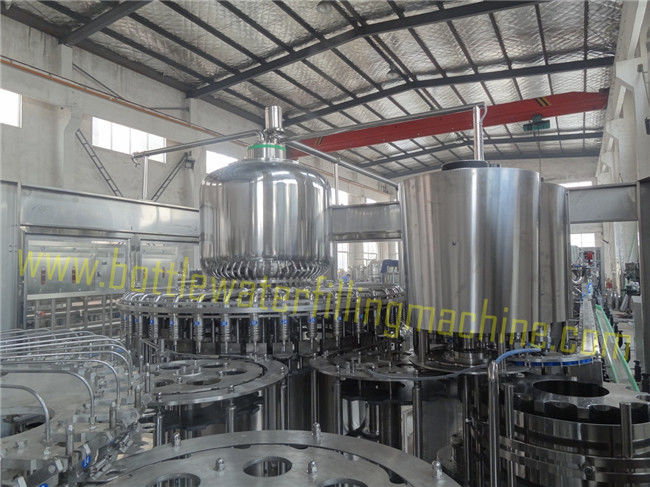

    Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS 0

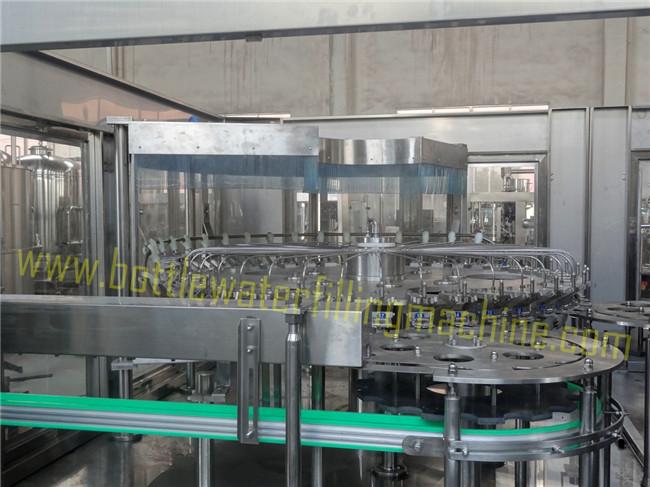

    Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS 1

    Final product

    Grapefruit Juice Filling Machine / Industrial Bottling Equipment CE SGS 2

    Besides this CGF32-32-10,we also have other capacity

    Model RCGF16-12-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12 RCGF50-50-15
    rising heads 16 18 24 32 40 50
    filling heads 12 18 24 32 40 50
    capping heads 6 6 8 10 12 15
    Bottle standard(mm)

    Diameter:Φ50-Φ108

    Height:150-320

    Rated production capacity(B/H for 500ml) 4000 6000 10000 12000 16000 24000
    Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12
    Overall size L*W*H(mm) 3050*2000*2400 3170*2070*2400 4070*2350*2400 5100*2600*2400 6250*3050*2400 7500*3900*2400



    We smallest capcity is 2000B/H,  waiting for you... ...
