Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment

Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment

    • Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment
    • Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment
    • Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment
    • Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment
  • Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: RCGF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: pls inquiry
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Juice Filling Machine Function: Bottle Rising Filling Capping
    Suitable Bottle: PET Bottle Filling Material: Juice, Tea, Coffer
    Filling Type: Hot Filling Capacity: 14000B/H
    Voltage: 380 50hz Or Customized Control: PLC+Touch Screen

    Commercial Fruit Juice Making Machine, Fruit Juice Filling Line





    Features



    1. It is applicable to different shaped bottles and plastic bottles: PP, PE, PVC, glass bottle and mould bottles.
    2. The bottle-in and bottle-out has specialized structure. It doesn't drop bottles or nip bottles.
    3. PLC control , simple and easy to operate.
    4. The part which touches the liquid medicine is made of 316L stainless material completely, meeting the requirement of GMP.
    5. It can be connected with the bottle-washing machine and the label-attaching machine to form a complete set of produce line.
    6. No bottle no filling. Unique drip proof device in production process, ensure no irrigation constant filling
    7. function.
    8. High filling accuracy

    Technical parameter
    Model RCGF32-32-10
    Capacity 12000-15000bph (500ml PET bottle)
    Suitable bottle Polyester bottle, PET bottle
    Filling materail Fruit juice, tea, coffee, other non-carbonated beverage
    Bottle Height 150-310mm
    Bottle Diameter 40-108mm
    Filling Temperature ambient
    Filling Technology gravity filling
    Applications purified water and mineral water
    Power supply 380V 50Hz 3Phases or customized
    Total power 9.18KW
    Dimension 3600*2800*2200mm
    Weight 5500kg

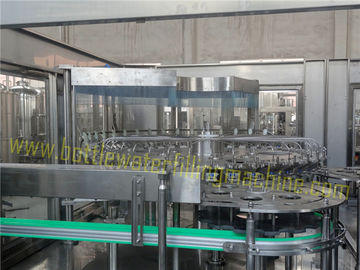

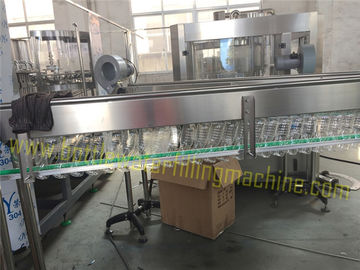

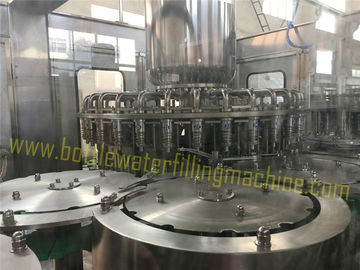

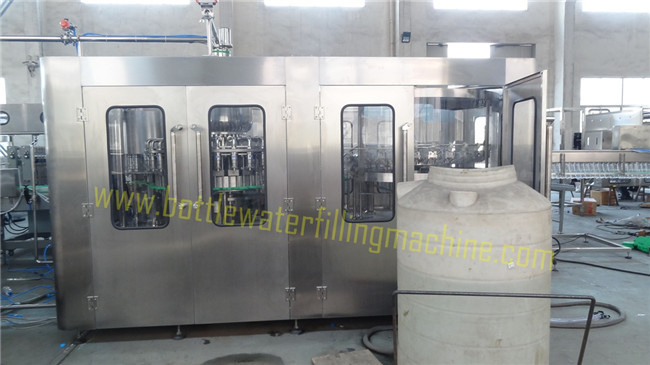

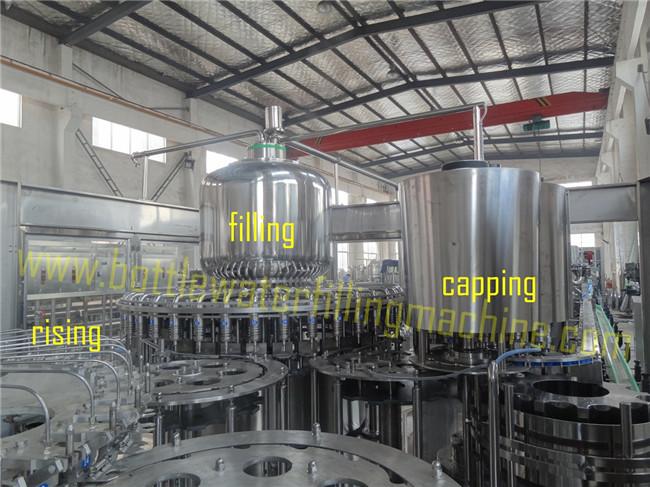

    Product Details
    Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment

    final product

    Commercial Fruit Juice Filling Machine , Hot Bottling Filling Equipment


    Besides this CGF32-32-10,we also have other capacity

    Model RCGF16-12-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12 RCGF50-50-15
    rising heads 16 18 24 32 40 50
    filling heads 12 18 24 32 40 50
    capping heads 6 6 8 10 12 15
    Bottle standard(mm)

    Diameter:Φ50-Φ108

    Height:150-320

    Rated production capacity(B/H for 500ml) 4000 6000 10000 12000 16000 24000
    Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12
    Overall size L*W*H(mm) 3050*2000*2400 3170*2070*2400 4070*2350*2400 5100*2600*2400 6250*3050*2400 7500*3900*2400



    We smallest capcity is 2000B/H,  waiting for you... ...
