250 - 2000ml Water Bottle Filling Machine , Drinking Water Production Plant

250 - 2000ml Water Bottle Filling Machine , Drinking Water Production Plant

    • 250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant
    • 250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant
    • 250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant
    • 250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant
  • 250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: CGF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: pls inquiry
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Water Bottling Machine Model: CGF18-18-6
    Suitable Bottle: PET Plastic Bottle Filling Material: Mineral Water, Purified Water, Drinking Water
    Capacity: 5000-6000B/H Warranty: 1 Year

     250-2000ml Water Bottling Equipment,Drinking Water



    Production Plant

    Parameter

    Model CGF18-18-6
    Max capacity 6000bph (500ml PET bottle)
    Bottle size 250-2000ml
    Bottle Height 150-320mm
    Bottle Diameter 40-108mm
    Suitable cap Plastic screw cap
    Cap size 28-38mm
    Filling Tenperature ambient
    Filling Technology gravity filling
    Applications purified water and mineral water
    Power supply 380V 50Hz 3Phases or customized
    Total power 5.03KW
    Dimension 2450*1800*2300mm
    Weight 4000kg


     Description

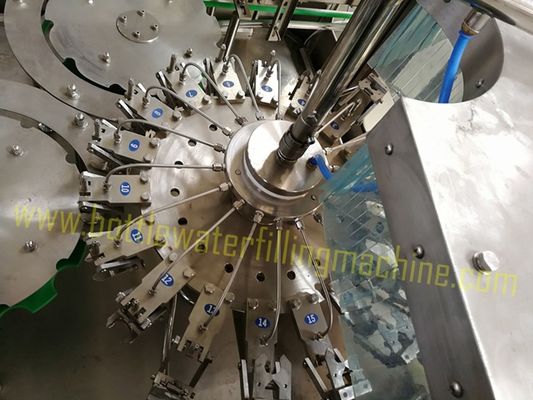

    This machine is our most popular model, it is a rising filling caping monoblock,
    has 18 rising heads 18 filling heads and 6 capping heads, can produce water
    5000-6000 bottles per hour, suitable for producing non-carbonated beverage,
    like mineral water, purified water, sring water, vitamin water, juice, tea and other
    non-gas liquid.
    Details
    cap elevator

    250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant
    overall look
    250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant

    250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant

    250 - 2000ml Water Bottle Filling Machine  , Drinking Water Production Plant

    Besides this CGF18-18-6, we also have other capacity

    Model CGFB16-16-12-6 CGFB18-18-18-6 CGFB24-24-24-8 CGFB32-32-32-10 CGFB40-40-40-12 CGFB50-50-50-15
    Number of sterilizing heads 16 18 24 32 40 50
    Number of rising heads 16 18 24 32 40 50
    Number of filling heads 12 18 24 32 40 50
    Number of capping heads 6 6 8 10 12 15
    production capacity(500ml) 4000BPH 6000BPH 10000BPH 12000BPH 20000BPH 24000BPH
    Bottle standard(mm)

    Diameter:Φ50-Φ108

    Height:150-320

    Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12
    Overall size L*W*H(mm) 3050*2000*2400 3170*2070*2400 4070*2350*2400 5100*2600*2400 6250*3050*2400 7500*3900*2400


    If you want to get your precise quotation, pls leave your capacity, thanks... ...
