    Product Details:

    Place of Origin: China (mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: DCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD5000 per set
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Name: Carbonated Drink Bottling Machine Function: Bottle Washing Filling Capping
    Suitable Bottle: PET Bottle Bottle Volume: 330-2000ml
    Filling Material: Carbonated Drink, Sparking Water, Soda Water ... Capacity: 2000-24000BPH
    Material: SUS304 Warranty: 1 Year

    Carbonated beverage rising filling capping 3 in 1 machine



    This production line is used for the production of fruit juice, vegetable protein drinks, function beverages, tea drinks and carbonated drinks. According to customers' requirements, we can design the



    capacity of the line from 2000bph to 36000bph. The complete production line including fruit processing system/extraction treatment system, water treatment system, sugar melting system/soda mixing



    system, homogenization &sterilization system, CIP system, bottle blowing system, bottle unscramble system, air deliver system, filling system, lamp check system, second sterilization system, labeling



    machine, drying machine, coding machine, wrap shrinking machine, conveyor, boiler etc. Degree of automation can be configured according to customer requirements, provide process flow and



    workshop layout design, full technical guidance.



    Technical parameter

    odel

    DCGF

    16-12-6

    DCGF

    18-18-6

    DCGF

    24-24-8

    DCGF

    32-32-10

    DCGF

    40-40-12

    DCGF

    50-50-15

    Washing No 16 18 24 32 40 50
    Filling No 12 18 24 32 40 50
    Capping No 6 6 8 10 12 15
    Production Capacity(500ml) 3000BPH 5000BPH 8000BPH

    12000

    BPH

    15000

    BPH

    18000

    BPH

    Install Capacity(KW) 3.5 4 4.8 7.6 8.3 9.6
    Overall size 2450×1800×2400 2650×1900×2400 2900×2100×2400 4100×2400×2400 4550×2650×2400

    5450×3210×2400



























    Machine pictures

    Complete Carbonated Soft Drink Bottling Machine , Carbonated Beverage Filling Machine

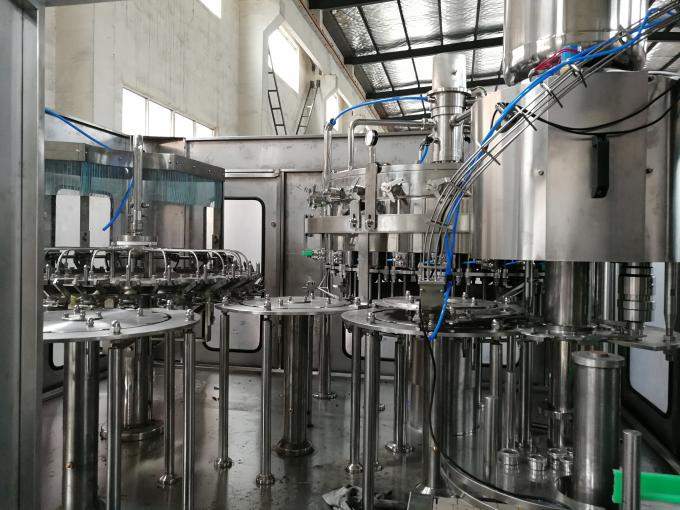

    inner look

    Complete Carbonated Soft Drink Bottling Machine , Carbonated Beverage Filling Machine

    washing

    Complete Carbonated Soft Drink Bottling Machine , Carbonated Beverage Filling Machine

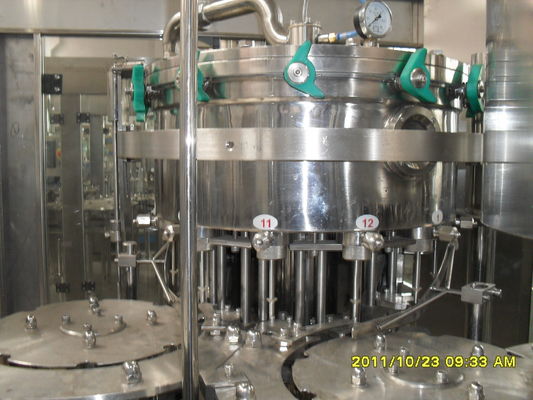

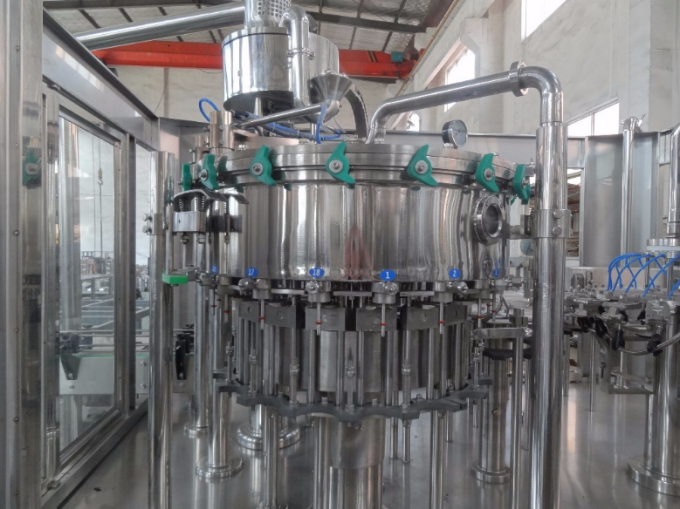

    filling

    Complete Carbonated Soft Drink Bottling Machine , Carbonated Beverage Filling Machine

    capping

    Complete Carbonated Soft Drink Bottling Machine , Carbonated Beverage Filling Machine

    details

    Complete Carbonated Soft Drink Bottling Machine , Carbonated Beverage Filling Machine



    3. The working process

    The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts equal pressure filling way. The filling valve opens and begins filling when it moves down and touches thebottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.
