3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production

3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production

    • 3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production
    • 3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production
    • 3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production
  • 3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production

    Product Details:

    Place of Origin: CHINA, jiangsu
    Brand Name: JIAYUAN
    Certification: CE, SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 4000-40000 per set
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 100 set per year
    Contact Now
    Detailed Product Description
    Name: Water Bottling Machine Function: Rising Filling Capping
    Suibtable Bottle: 330-2000ml PET Bottle Filling Material: Mineral Water, Pure Water
    Capacity: 2000-30000BPH Control: PLC+Touch Screen
    Warranty: 1 Year
    High Light:

    liquid bottle filling machine

    ,

    water bottling equipment

    Product Description

    This series of producing water bottling lines are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.



    Parameter

    Model CGF12125 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020
    Number of washing, filling and capping heads 12-12-5 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20
    Production capacity(600ml)
    (B/H)
    2000-4000 5000-7000 8000-12000 12000-15000 16000-20000 20000-24000 25000-30000 35000-40000
    suitable bottle specification(mm) φ=50-110=170 330-2250ml
    Washing pressure(kg/cm 2 ) 2-3
    Motor power(kw) Main motor
    2.2kw
    Main motor
    2.2kw
    Main motor
    3kw
    Main motor
    5.5kw
    Main motor
    7.5kw
    Main motor
    11kw
    Main motor
    15kw
    Main motor
    19kw
    Overall dimensions (mm) 2400×1650
    ×2500
    2600×1920
    ×2550
    3100×2300
    ×2800
    3800×2800
    ×2900
    4600×2800
    ×2900
    5450×3300
    ×2900
    6500×4500
    ×2900
    76800×66400
    ×2850
    Weight (kg) 2500 3500 4500 6500 8500 9800 12800 150

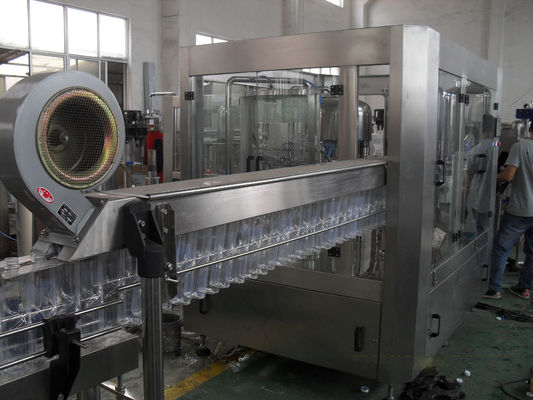

    overall look

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 0

    inner look

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 1

    rising

    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

    Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

    Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 2

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 3

    filling

    The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

    The filling valve material is SUS304

    The filling system has liquid level automatic control.

    Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.

    Bottle is conveying by the wheel in the filling part.

    The juice or other hot beverage can be backflow by return tank to control filling temperature.

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 4

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 5

    capping

    Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 6

    about our company



    We are the real factory in China which produces filling machine and package machine and other auxiliary equipment professionally.

    We can provide beverage production line as below:

    1. bottling minereal/pure water production line;

    2. barrel mineral/ pure water production line

    3. bottling carbonated beverage production line (like coca cola);

    4. bottling juice production line;

    5. canning beverage production line;

    6. glass bottle beer production line;

    7. milk/tea filling&package line;

    8. oil filling&package line;

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 7

    CERTIFICATE

    3-In-1 Monoblock Automatic Pure Liquid Bottle Filling Machine For Fruit Juice Production 8

    CONTACT US



    JIAYUAN is always ready to fulfill your company’s needs according to your business goals.

    contact person: Alice chen

    tel/whatsapp: 86 18306249355

    email:jysales1@zjgjyjx.cn

    (If you want to get your precise quotation,pls leave your capacity.thanks!)
